                                           Eclipse

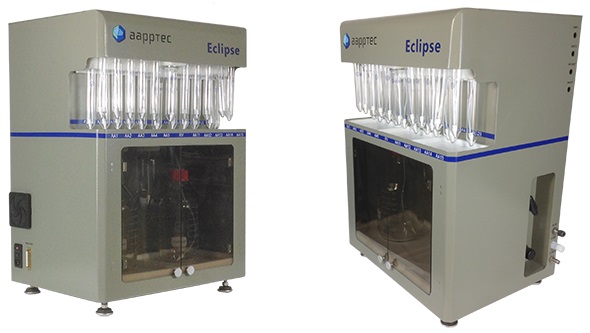

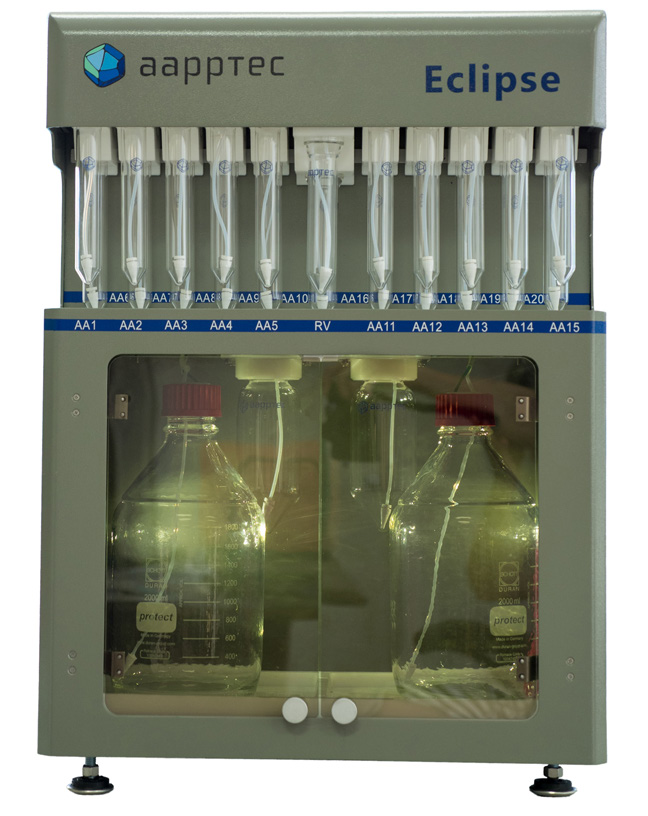

Eclipse 智能型胜肽合成儀

• Eclipse™ is a Smart™ new peptide synthesizer providing the peptide chemist software which analyzes any sequence no matter how difficult the deprotection and coupling. The Eclipse™ SMART™ presents the user with a synthesis strategy in written and graphic display which provides a protocol for each step of the process including deprotection and coupling steps. Our exclusive software is based on an algorithm compiled from AAPPTec′s thirty-five years of experience synthesizing difficult peptides.

• ECLIPSE是AAPPTec公司*新推出的一款智慧SMART多肽合成儀。即使在脫保護步驟和偶聯步驟十分困難的條件下，高度智慧化的SMART軟體也能夠説明多肽研究者分析多肽的氨基酸系列，從而高效、快速地完成多肽序列的合成。ECLIPSE SMART軟體通過文字顯示和圖形顯示兩種方式來呈現多肽合成策略，為多肽合成過程中的每一步，包括脫保護和偶聯，提供詳盡的實驗方案。專業的、獨有的SMART軟體所基於的演算法來自於AAPPTec公司35年的困難多肽合成經驗的積累。

• The Eclipse™ is the research scale peptide synthesizer used by novices and experts alike. Researchers need only to enter:
  1. Peptide sequence & name
  2. Amount of resin
  3. Resin substitution
  4. Press ″Analyze Sequence″
  5. Press ″Run″

• ECLIPSE^TM作為科研級的多肽合成儀，已經被廣大的多肽合成專家和初學者接受和喜愛。在進行多肽合成時，只需要在軟體中輸入：

  1.      多肽系列和名字；

  2.      樹脂使用量；

  3.      樹脂替代常數；

  4.      點擊“分析系列”；

  5.      點擊“運行”。

• The Eclipse™ Smart™ Synthesis software will automatically generate and carry out the synthesis protocol without additional input. Experienced peptide researchers can create custom protocols including double and single couplings,longer or shorter reaction times or variable temperatures. They can change the number of washes or even utilize different coupling chemistry for each amino acid. While the instrument is running, one can change the protocol without interruption or set up the next synthesis.

• The Eclipse™ SMART™ software not only automatically displays a graphical prediction of synthesis difficulty, but also calculates the solvent reagents needed for the synthesis according to the synthesis protocol. The concentration of the reagents are calculated and provided for the synthesis including the position where each monomer or amino acid should be placed.

• The system also monitors liquid deliveries, temperature of the reaction, washing, and emptying reaction vessels. When the synthesis is complete, the SMART™ software requests to automatically wash and clean all of the vessels and lines that have been used in the synthesis to be ready for the next use.

• The SMART™ software can be programmed to predict when and where to modify the chemistry either by using double coupling, substituting pseudo proline dipeptides, Dmb protected dipeptides or amino acid, double coupling and extended deprotection, etc. Thus, these modifications improve synthesis efficiency and increase the quality of crude peptide by reducing the side products which results in a greater increase in yield and superior crude peptide.

• Eclipse™ Features & Options
  Automatically set up synthesis
  Smart software predicts difficult sequences and automatically suggests protocol suitable for efficient coupling
  Gives flexibility to the expert chemist to modify protocol
  Precise delivery of amino acids and reagents
  Amino acid pre-activation
  Mixing by N2 bubbling
  Heating, fast coupling and deprotection available for proven delayed gradient technique
  Low solvent usage
  Low cost of reagent
  Low waste
  All reactor, amino acid containers and reagent bottles are all easily accessible from the front
  Compact footprint

• Specifications
  Width: 18.5″(47cm)
  Depth: 14.5″(37cm)
  Height: 25.5″(65cm)
  Weight: 75lbs(34kg)
