Focus Xi , XC , XCII, XCIII 系列全自動胜肽合成儀

　



　


　

　

　

特點

  • 非常容易操作，預算內價格

  • 室溫下 Peptide或可控溫的有機物合成

  • 可同時進行 1，2，4 或 6 個胜肽合成. 反應器有 5，25，50，100 及 200mL.

  • 反應攪拌方式為可調速的震盪攪拌及氣泡攪拌

  • 合成 peptide可行 Fmoc 或  tBoc 化學反應

  • 可在本機進行 cleavage

　

　

Focus 有下列型號及規格

　

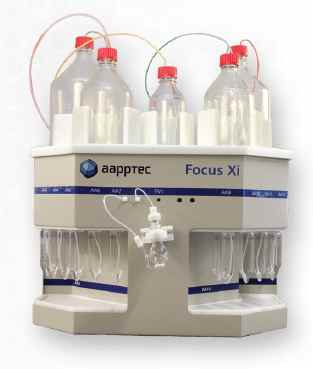

Focus Xi

(Personal Synthesizer)

  • 1 Reactor (Optional Sizes: 25，50，100，200，300 or 500mL)
  • 5 Solvent/Reagent Lines (variable bottle sizes)
  • 16 Amino Acid Containers (90mL)
  • Optional: Up to 24 Amino Acids
  • Nitrogen Mixing，Optional Mechanical Mixing
  • Optional UV Monitoring，Heating and Cooling

　

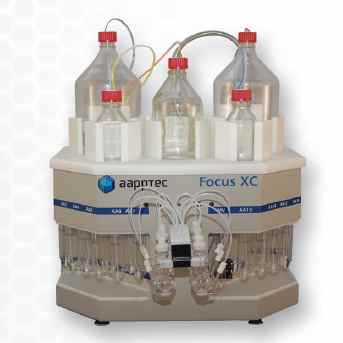

Focus XC(2，4，6)

(Research Instruments)

  • 2，4 or 6 Reactors
  • Optional Reactors Sizes: 25，50，100，200，300 or 500mL
  • 6 Solvent/Reagent Lines
  • 24 Amino Acid Containers option (10mL，40mL，90mL or 250mL)
  • Measuring and Preactivation Vessel option (15，45，90 or 250 mL)
  • Nitrogen Mixing，Optional Mechanical Mixing
  • Optional UV Monitoring，Heating and Cooling

　

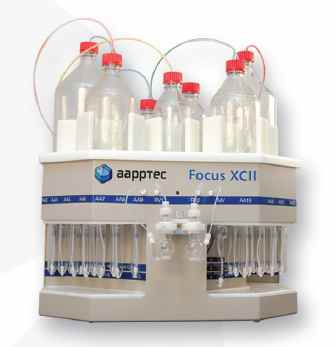

Focus XCII

(pNA/DNA/Peptide)

  • Two Reactors (2-25mL)
  • Two 6 Solvent/Reagent Lines
  • 6 Solvent/Reagent Lines
  • 24 Monomer Containers (10 - 30mL)
  • Mechanical and Nitrogen Mixing
  • Optional UV Monitoring，Heating and Cooling

　

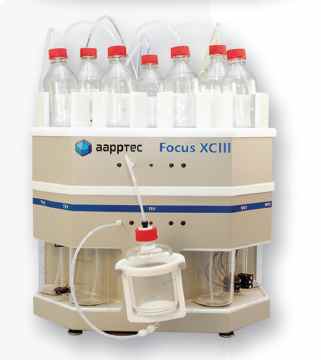

Focus XCIII

(Production)

  • 1 Reactors
  • Optional Reactors Sizes : 500mL，1L，2L，3L or 5L
  • 6 Solvent/Reagent Lines
  • 2 Amino Acid Containers (variable amino acid sizes)
  • Optional: Up to 12 Amino Acids
  • Optional UV Monitoring，Heating and Cooling
  • Nitrogen/Mechanical Mixing

　

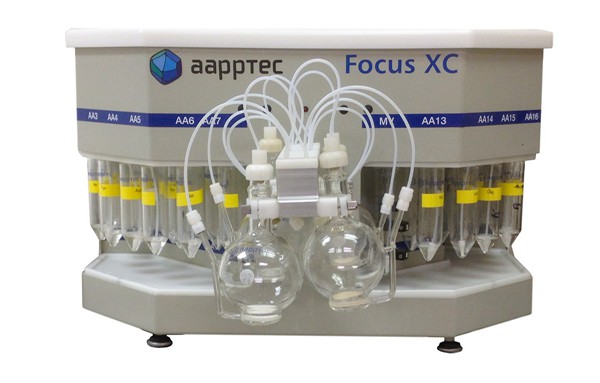

Flexible, Reliable, And Easy-To-Use: The Focus XC™ Peptide Synthesizer

Flexibility to perform virtually unlimited synthesis options, a long-standing reputation for quality, and intuitive software make the Focus XC™ by AAPPTec an excellent peptide synthesizer to produce high-quality peptides.
If you are working in discovery research, synthetic methods, process development or even production for phase 1 and phase 2 clinical trials, and have come to the conclusion that it is time to invest in new peptide synthesis equipment for your lab, the Focus XC™ by AAPPTec fulfills many requirements pertaining to scale and chemistry. A new Focus XC™ is user-friendly, fully automated and capable of simultaneous and parallel peptide synthesis. SMART™ software predicts difficult sequences and automatically suggests a protocol suitable for efficient coupling and deprotection. On-screen instructions direct users through every step of the synthesis process with point-and-click commands which makes operating the instrument simple. Software tells the user when and where to modify the chemistry either by using extended deprotection, double coupling, or substituting pseudoproline dipeptides or Dmb protected dipeptides. The software also provides flexibility for expert chemists to develop unique new protocols. The average reaction scales are .01mmol to 5 mmol per reactor with 20 mg -10 g of resin. The Focus XC™ is specially designed for Fmoc and t-Boc chemistries, and it can reliably deliver volumes as low as 200 𝝁L to support pNA, DNA and RNA synthesis.
The powerful combination of utilizing 1-6 reactors (or optionally more lines), 24 AA vials and 6-7 solvent/reagent lines provide expert and novice chemists with virtually unlimited synthesis options.

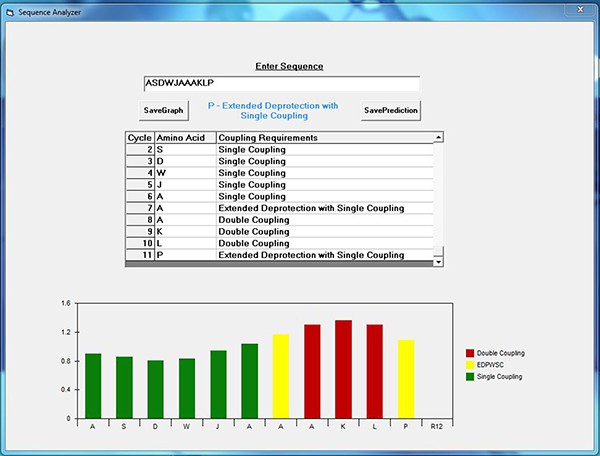

The graphical prediction of synthesis difficulty by Focus XC™ software.
The Focus XC™ not only displays a graphical prediction of synthesis difficulty, but it also calculates the solvent and reagents needed for the synthesis according to the synthesis protocol. The concentration of the reagents are provided, including the position where each monomer or amino acid should be placed. The Focus XC™ SMART™ software also monitors liquid deliveries, temperature of the reaction, washing, and emptying reaction vessels. Solvents, amino acids and reagents are delivered precisely, resulting in efficient reactions with lower solvent usage and lower waste.
The Focus XC™ is a highly reliable peptide synthesizer that allows expert chemists, like Dr. Hodges and Dr. Gera, virtually unlimited synthesis options.

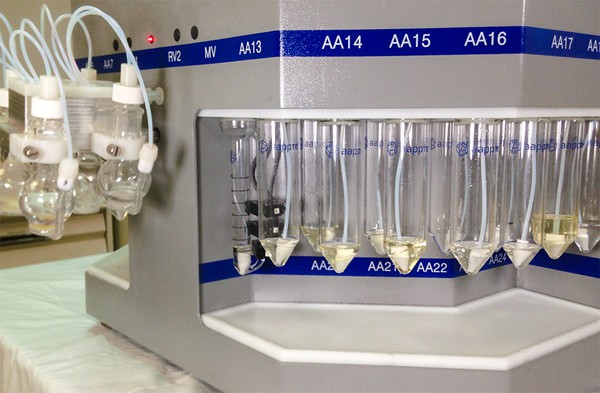

If lab space needs to be considered in your purchase, the Focus XC™ is a modest size and takes up minimal space compared to other peptide synthesizers. Specifications are W 26.5"(67cm), H 25"(63.5cm), D 23"(58cm) resulting in a compact bench footprint. Also, the reactor, amino acid containers and reagent bottles are easily accessible from the front.
The Focus XC™ is designed to meet the demands of continued medical research and it is also easy to set up, learn, and operate. AAPPTec offers technical guidance to set up the Focus XC™ for advanced peptide chemistry as well.

　

　

　
