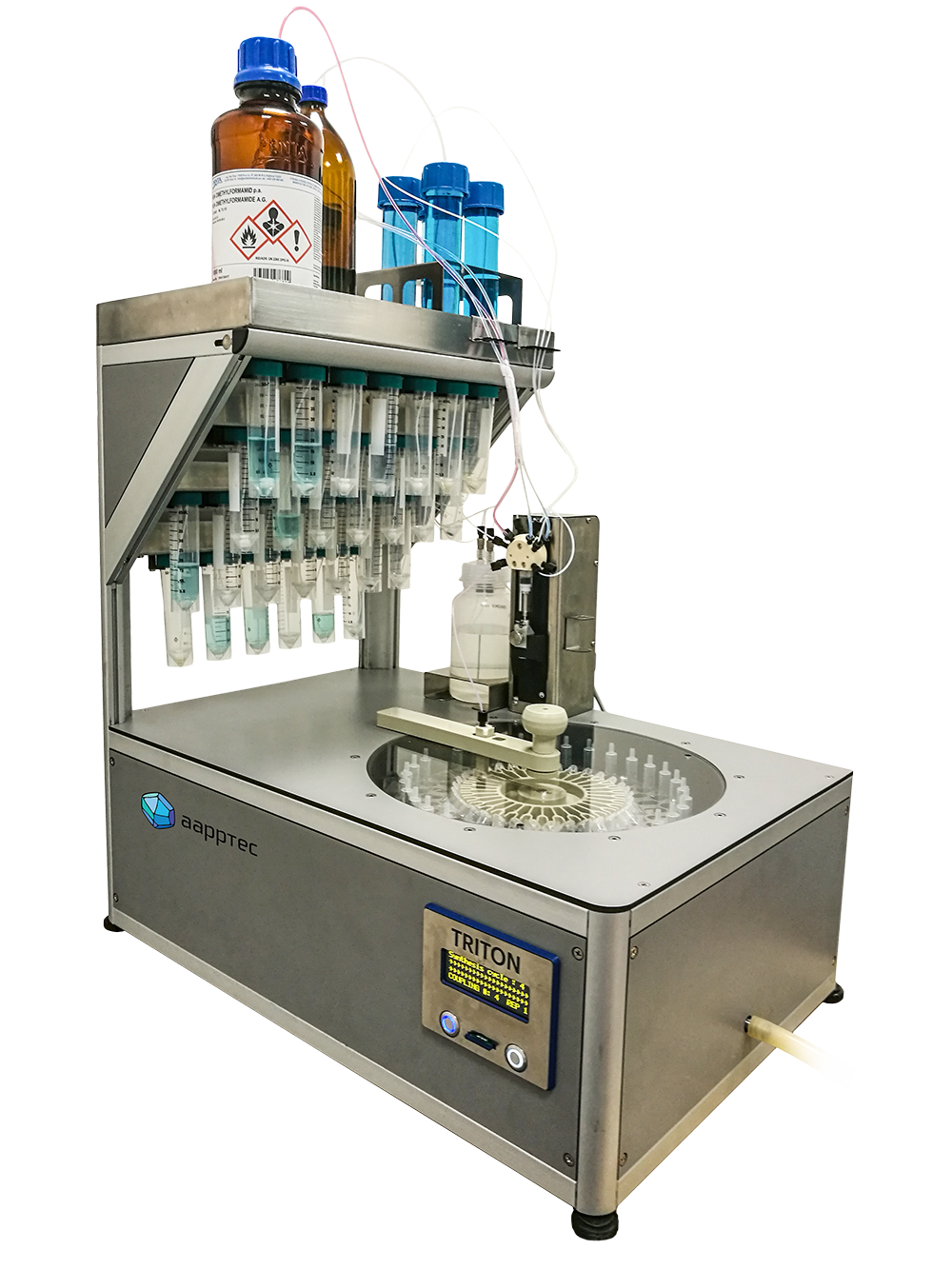

Triton Centrifugal Synthesizer
離心式自動胜肽合成儀
|
特點
-
The Triton™ Centrifugal syringe peptide synthesizer allows the
operator to run 32 long peptides and short peptides syntheses
simultaneously. The TritonTM uses disposable syringe barrel type
reactors with filters in the bottom for synthesis and cleavage.
There are two reactor sizes: 32 x 5mL(5mg-250mg) or 18 x 10mL(25mg-
500mg) disposable syringe barrels. The length of each peptide can be
short or long sequences.
-
All solvents and reagents are precisely measured by syringe before
they are delivered simultaneously into all of the reactors and
mechanically mixed.
-
The instrument can be paused or stopped at any point during the
synthesis. In any step of the synthesis, the operator may remove an
individual reactor and perform a special operation requiring special
conditions or utilizing very sensitive or special reactant manually.
After that step, the reactor can be returned to the device for
continuation of the oligomer assembly. It therefore enables the
synthesis of peptides containing even very sensitive, costly or
valuable monomeric units, which need special treatment and
conditions.
|
-
High-quality crude peptides are produced by the following factors in the
Triton™ centrifugal peptide synthesizer:
-
1) The centrifugal force used for emptying the reactors in the Triton™
removes the maximum amount of solvents and reagents from the resin bed.
-
2) All of the solvents and reagents are measured precisely by syringe.
-
3) The Triton™ reduces solvent usage and also possible cross-contamination by
having a reduced number of valves and tubing.
-
4) The software analyzes the difficult sequences and applied protocol to
overcome obstacles in deprotection and coupling.
-
5) The system simultaneously fills and empties the reactors which accelerates
the synthesis.
-
SPECIFICATIONS
Width: 18.5" (47cm)
Depth: 25" (63.5cm)
Height: 25.5" (65cm)
Weight: 75lbs (28kg)
|
|
